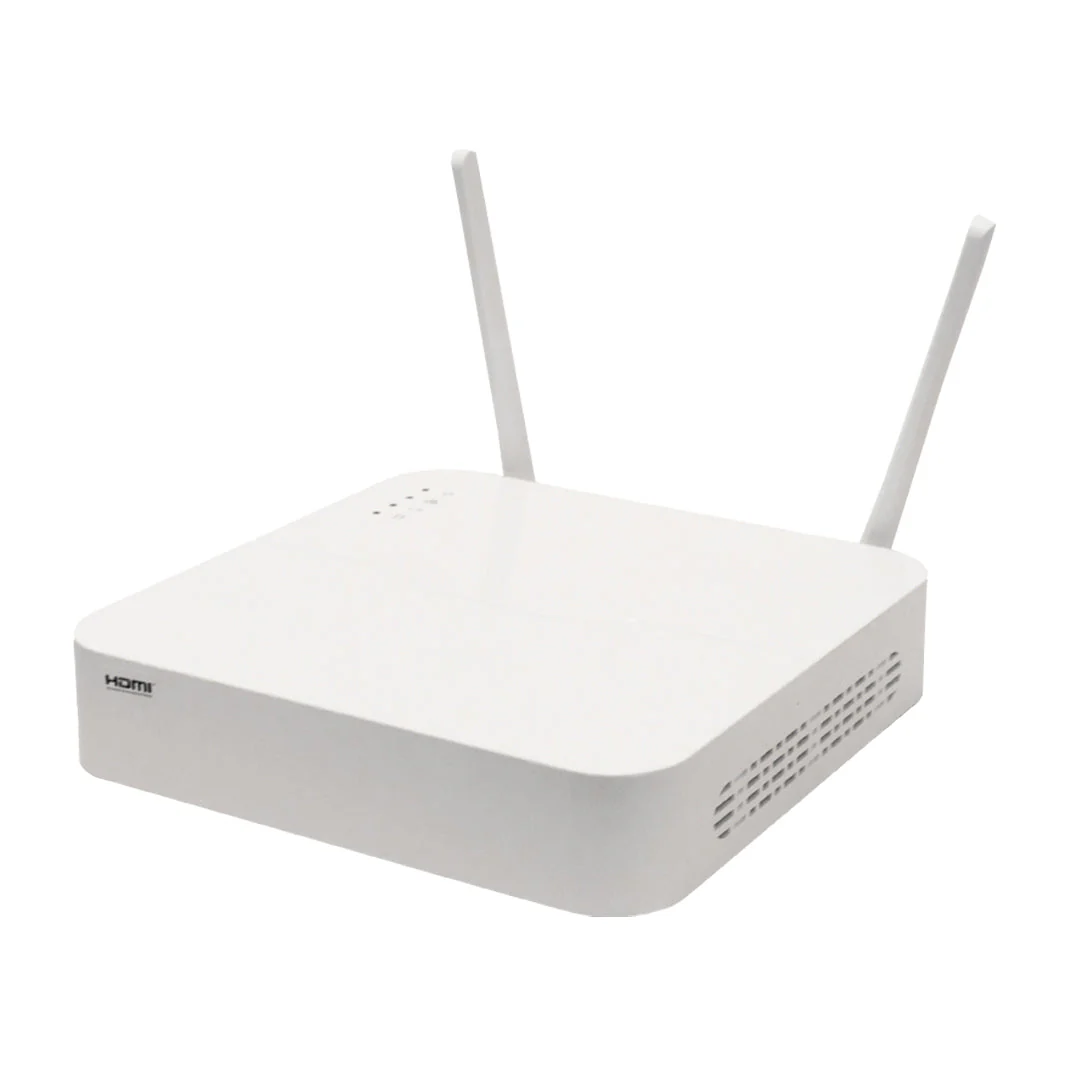

4-Channel Wireless NVR With 4x 2MP Wireless Cameras
SKU:
SC-WIFI-KIT4-2MP
VENDOR:
Phantom
This wireless camera kit includes 4-channel high-performance and high stability wireless NVR with 4 2MP 2.8mm fixed lens. Its maximum resolution is 1920 x 1080 at 30/25 fps and supports Ultra H.265 video compression technology, which assures savings in bandwidth and storage. Its housing is IP67 rated for outdoor use.
Physical Characteristics
- Dimensions: 205mm × 205mm × 47mm (8.1" ×8.1"×1.7")
- Operating Temperature: -10°C to 55°C (14°F to 131°F);
- Humidity: Humidity ≤ 90% RH (non-condensing)
- Power Supply: 12V DC
- Power Consumption: ≤ 9 W( without HDD )
Video and Audio Input
- IP Video Input: 4-channel
Video and Audio Output
- HDMI/VGA Output
- HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
- VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
- Recording Resolution: 1080P/960P/720P/D1/2CIF/CIF
- Audio Output: 1-ch, RCA
- Audio Compression: G.711A, G.711U
- Synchronous Playback: 4-channel
- Liveview Display: 1/4
- Corridor Mode Screen: 3/4
NVR
- Embedded WiFi Module with high-performance and high stability
- Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

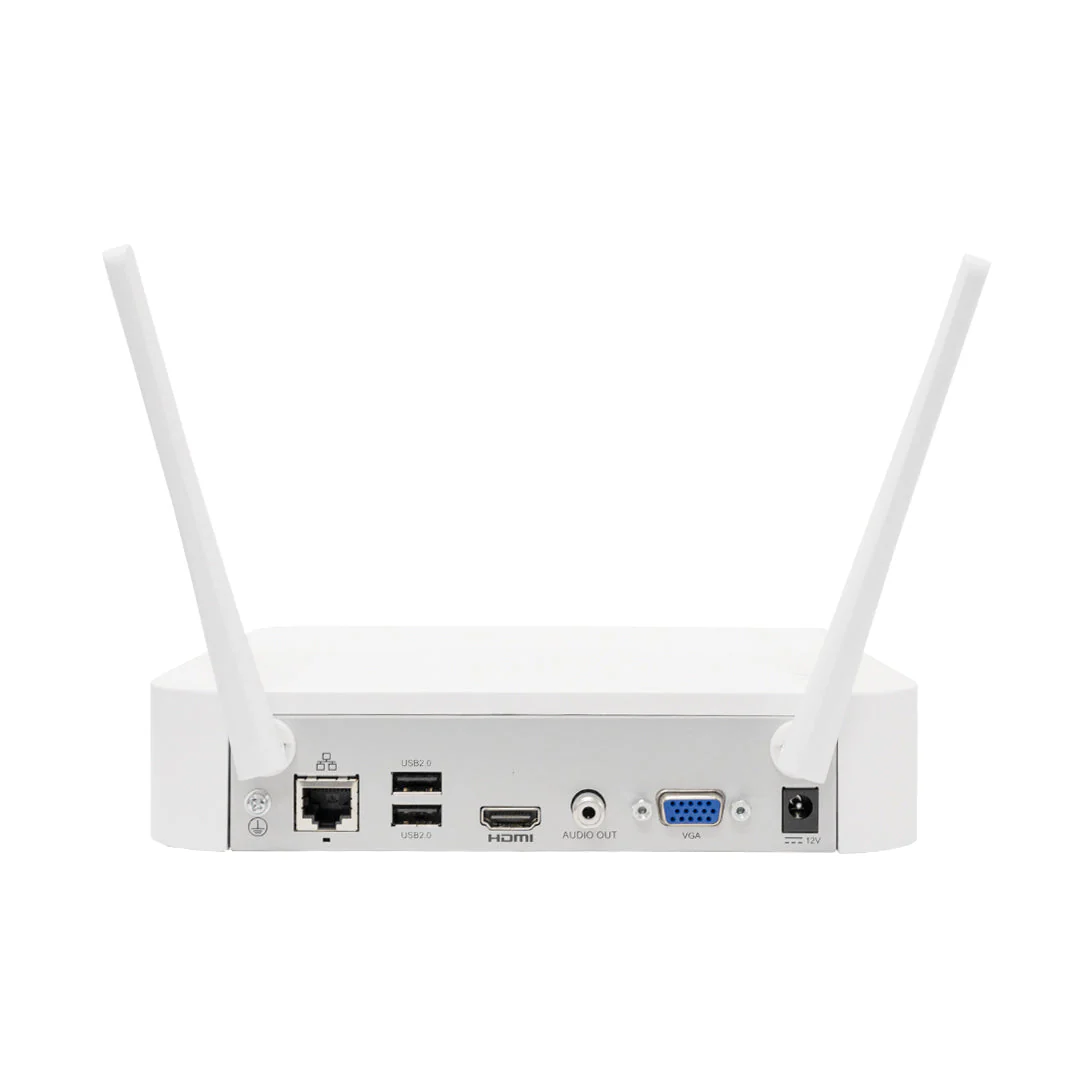

- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA synchronous outputs provided
- Up to 1080P resolution recording
- 1 SATA HDD, Up to 6TB for each HDD
- Support cloud upgrade
Camera
- High quality image with 2MP, 1/2.9"CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128 G Micro SD card
- IP67 protection
- 3-Axis
