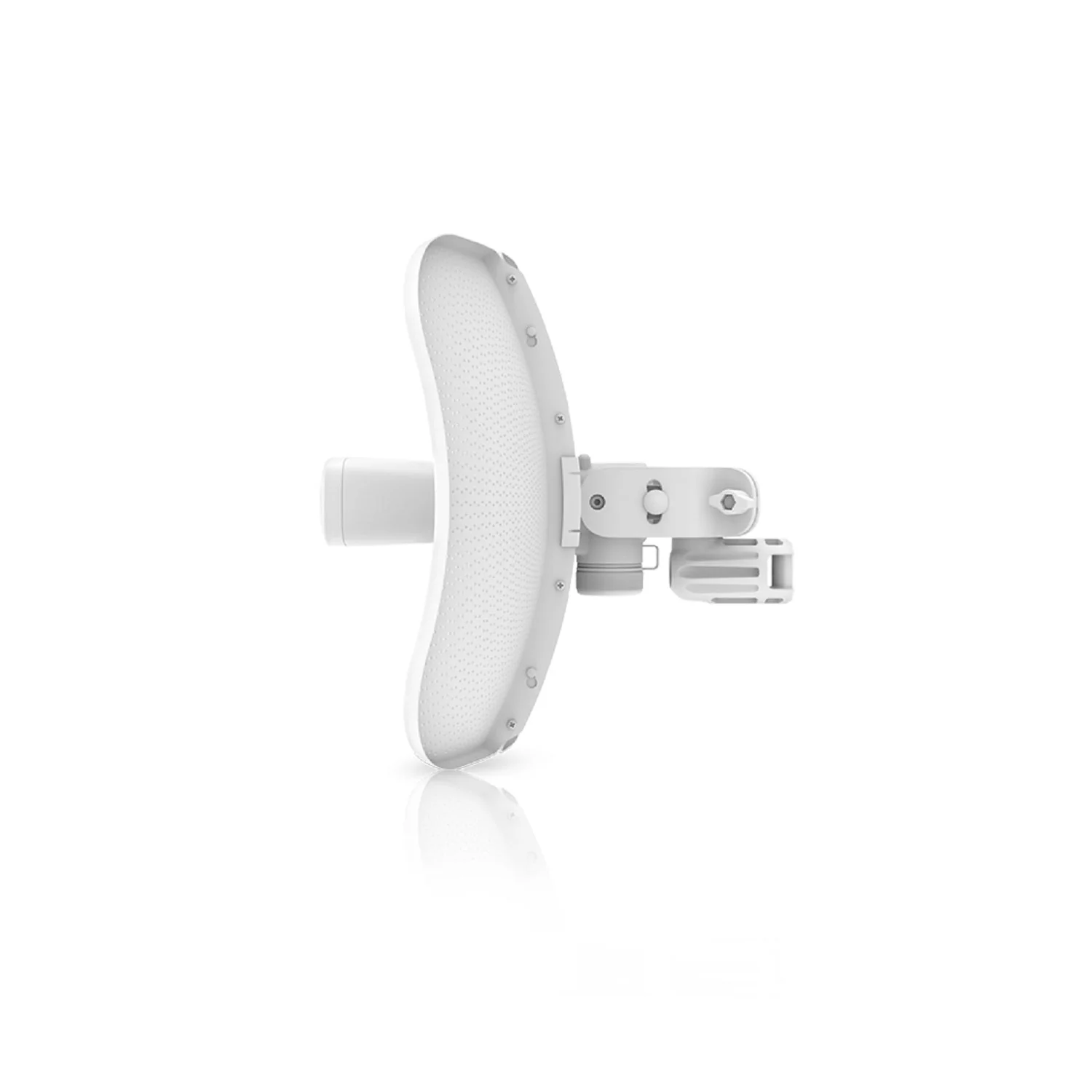

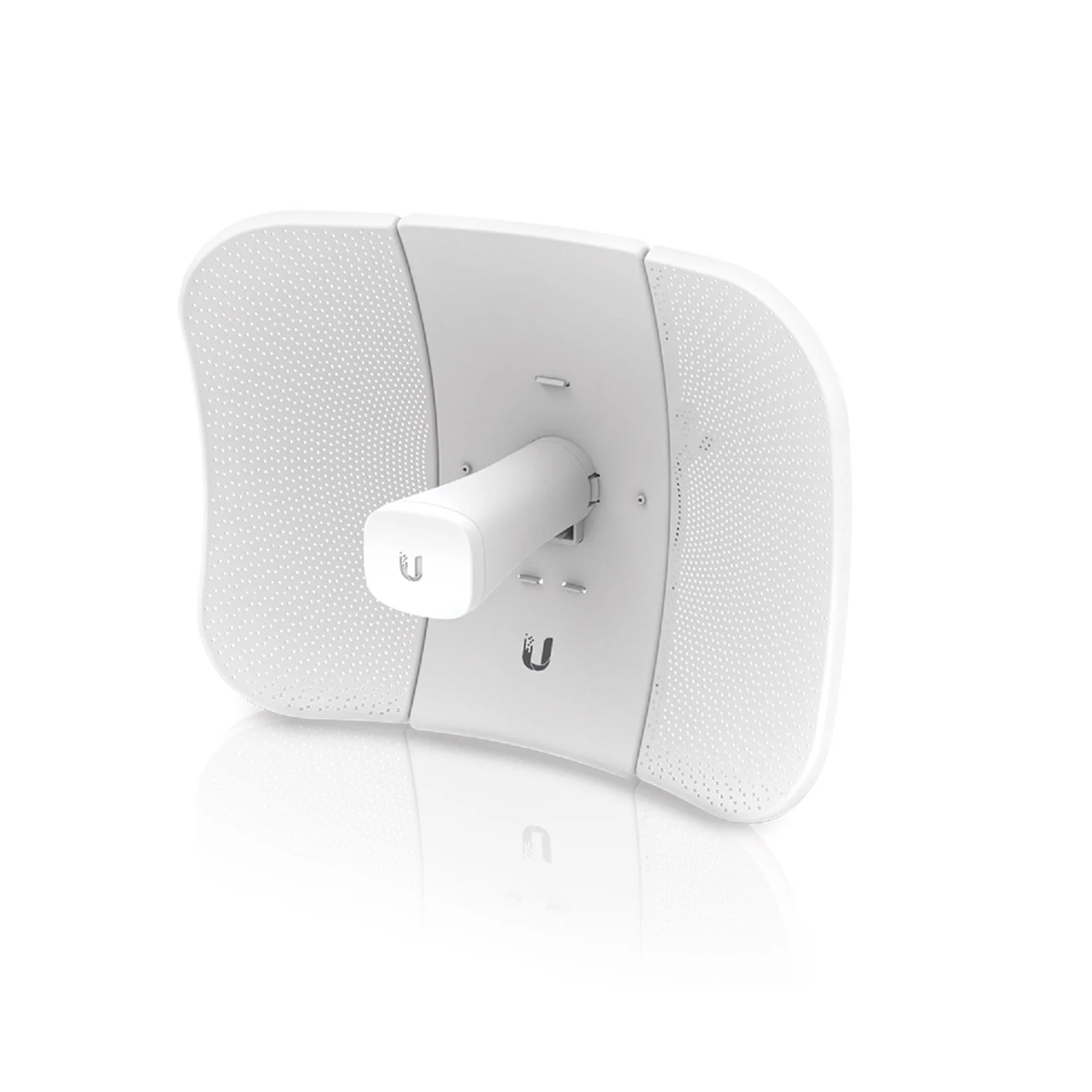

UISP airMAX LiteBeam Generation 2 CPE

SKU:
LBE-5AC-GEN2
VENDOR:
Ubiquiti

With tighter beamwidth, the LiteBeam 5AC Gen2 Airmax AC CPE with Dedicated Management Radio from Ubiquiti offers a more reliable long-distance point-to-point connection. This LiteBeam radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals. Setup is simple thanks to fully adjustable hardware allowing for adjustments to be made along both axes as well as a built-in bubble level to ensure the radio is mounted properly.The LiteBeam 5AC Gen2 directs RF energy in a tighter beamwidth. With the focus in one direction, the LiteBeam 5AC Gen2 blocks or spatially filters out noise, so noise immunity is improved.

Specifications
Features
Box Contents
  • Power Supply: 24 V, 0.3 A Gigabit PoE adapter (included)
  • Maximum Power Consumption: 7 W
  • Power Method: Passive PoE (pairs 4, 5+; 7, 8 return)
  • Voltage: 24 V +/- 10%
  • Operating Frequency: 2412 - 2462 MHz, 5150 - 5875 MHz, 5150 - 5250 MHz, 5250 - 5350 MHz, 5470 - 5725 MHz, 5725 - 5850 MHz
  • Gain: 23 dBi
  • Networking Interface: 1 x 10/100/1000 Ethernet port
  • Memory: 64 MB DDR2
  • Wind Loading: 61.8 lbf @ 125 mph (275 N @ 200 km/h)
  • Wind Survivability: 125 mph (200 km/h)
  • Operating Temperature: -40°F to 158°F (-40°C to 70°C)
  • Operating Humidity: 5 to 95% Non-condensing
  • Certifications CE, FCC, IC
  • •Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable
  • UISP Mobile App allows you to set up, configure, and manage the LiteBeam 5AC Gen2 by offering many options once you're connected or logged in to the device
  • Features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options as well as quick and easy alignment
  • Featuring enhanced protection against power surges, it offers a more robust mount with separate azimuth and elevation adjustments
  • 1 x Antenna Feed
  • 1 x Center Reflector Panel
  • 2 x Side Reflector Panels
  • 1 x Feed Receiver
  • 1 x Azimuth Mount
  • 1 x Elevation Mount
  • 1 x Metal Strap
  • 1 x Knob Kit
  • 1 x Gigabit PoE (24 V, 0.3 A) with Mounting Bracket
  • 1 x Power Cord
  • Limited 1-Year Warranty
