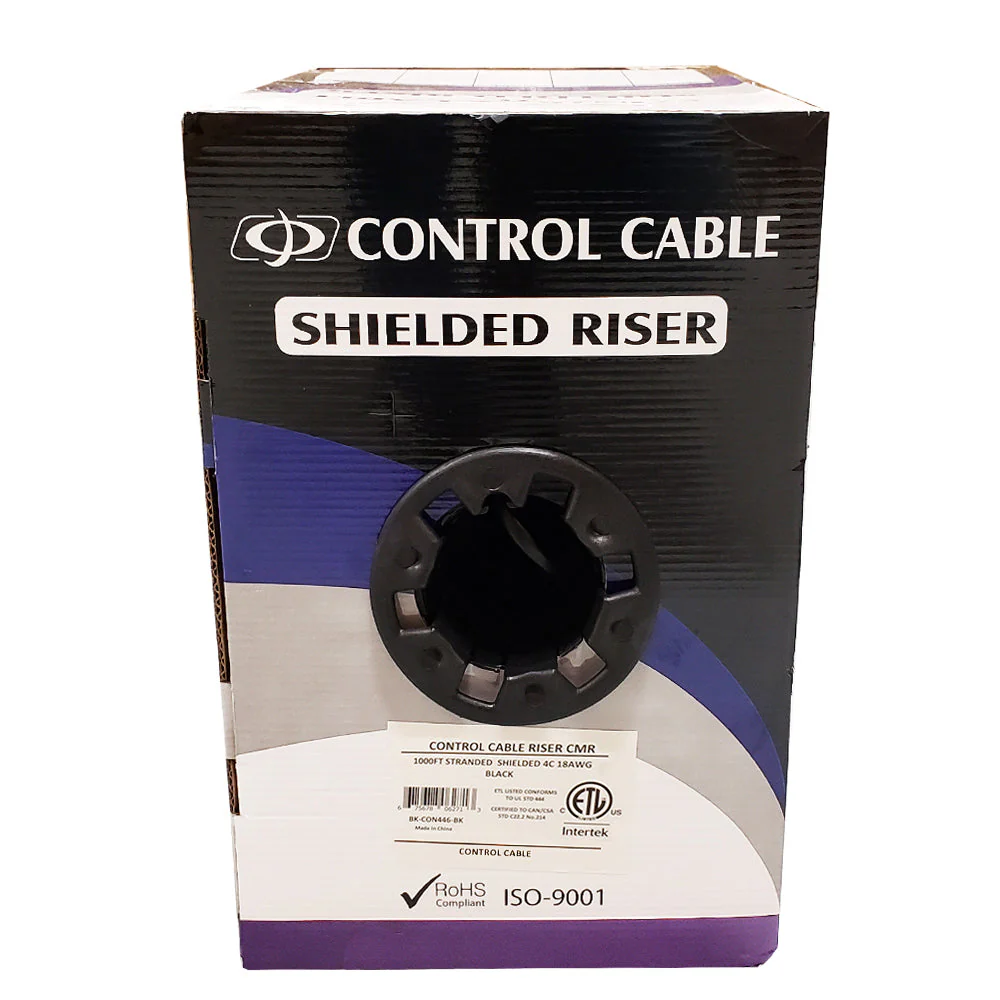

1000ft 4C 18AWG Stranded Control Cable - CMR Shielded - Black

SKU:
BK-CON446-BK
VENDOR:
Phantom

This 4 conductor 18AWG stranded shielded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.

Physical Characteristics
  • Cable Lengths Available: 1000 foot [305m] Pull Box
  • Color (Jacket): Black
  • Number of Conductors: 4 Conductors (Black/Red/Green/White) Oxygen Free Copper (OFC)
  • Jacket Material: PVC
  • Outer Diameter: 5.8mm
  • Wire Gauge: 18 AWG
  • Material (conductors): Bare Copper
  • Stranding: 16/0.25mm
  • Nominal Insulation Thickness: 0.38mm
  • Nominal Insulation Diameter: 1.9mm
  • Shielding: Overall Foil Shielded 110%
  • Drain Wire: 7*0.2mm Tinned Copper Drain Wire
  • Ripcord: Nylon
  • Temperature Rating: -20℃ ~ 75℃
  • Operating Voltage: 300V
  • Flammability Test: In Wall CMR/FT4

Mechanical Characteristics
  • Before Tensile Strength: >=13.8
  • Aging Elongation (%): >=100
  • Aging Condition (℃xhrs): 100x168
  • After Tensile Strength (Mpa): >=85% of unaged
  • Aging Elongation (%): >=50% of unaged
  • Cold Bend (-20±2º Cx4hrs): No Crack

Certifications
  • RoHS: Compliant
  • Reach: Compliant
  • c(ETL)us: Compliant

Box Contents

Package Quantity: 1 Pull Box

Weight(s)

Product Weight: 40 lbs
