1000ft 2C 18AWG Stranded Control Cable - CMR - Black
SKU:
BK-CON421-BK
VENDOR:
Phantom
This 2 conductor 18AWG stranded unshielded control cable is white in color and 1000 feet in length. It is typically used in control panel and automation control applications.

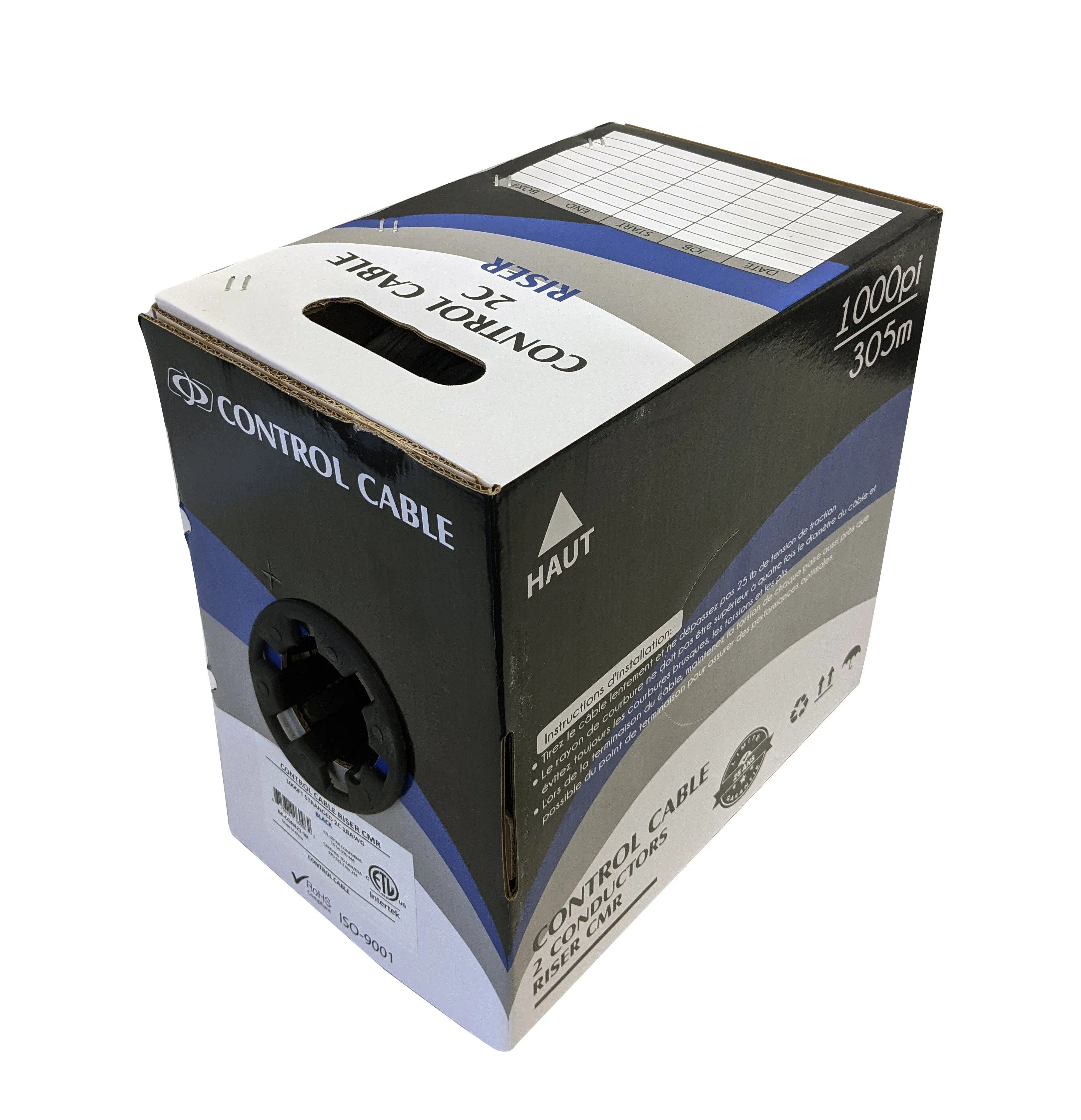

- 1000 foot [305m] Pull Box
- Black/White Color Jacket
- 2 Conductors (Red/Black)
- PVC Jacket Material
- 0.45mm Jacket Thickness
- 5.1mm Overall Diameter
- 0.38mm Insulation Thickness
- 1.9mm Insulation Diameter
- 18 AWG Wire Gauge
- 300V Maximum Voltage
- -20℃ ~ 75℃ Temperature Rating
- >=13.8 Before Tensile Strength (Mpa)
- >=100 Aging Elongation (%)
- 100x168 Aging Condition (℃xhrs)
- After Tensile Strength (Mpa) >=85% of unaged
- Aging Elongation (%) >=50% of unaged
- Cold Bend (-20±2º Cx4hrs)No Crack
- 1x Box of 1000 feet cable
